The bus shelter is not only economical but also convenient and fast. More importantly, it meets the needs of the big era: energy conservation and environmental protection. Therefore, the intelligent bus shelter has gradually become the representative of a city's civilization and an important figure in the development of a smart city. Therefore, the development of intelligent bus shelters is crucial. It has made a qualitative leap in both structure and system since it only looked at the platform information at the beginning of the transformation in recent years. Next, Jiangsu Jinghong will show you the internal structure of the intelligent bus shelter.

Its main structure is roughly divided into the following parts:

1、 Ceiling. Most people may think that the ceiling is a layer of boards with an overall appearance. It is not. More frameworks need to be configured in the ceiling to ensure that the ceiling is firm. The internal framework of the ceiling is a hot-dip galvanized steel pipe, which has the effect of rust prevention, anti-corrosion, and moisture-proof. It can be customized according to the style of the whole waiting booth. 150 * 150 * 3mm galvanized square pipe is selected at the difference between the ceiling and the column, and a 1.2mm galvanized plate is generally used as the upper sealing plate, The lower sealing plate is generally a 1.5mm galvanized plate. Plug-in holes will be reserved at the bottom of the top. There are two connection methods between the ceiling and the column: plug-in connection and threading connection.

2、 Column. As the supporting part of the whole shelter, the column is very important, so its material selection will be very strict. We usually choose hot-dip galvanized steel pipe or stainless steel pipe and stainless steel can be divided into 201 and 304 stainless steel materials. The wall thickness of the steel pipe should be at least more than 3mm. The standard of the steel pipe will also be customized according to the overall requirements of the shelter. The foot plate will be fully welded under the column, The foundation cage will be embedded in the foundation in advance and poured once, and then the foundation plate will be matched with the foundation cage, and then screwed up and poured again to ensure stability and firmness.

3、 Lightbox. The light box looks like a whole, but it is composed of several pieces. First, the box is designed with 1.5mm galvanized sheet bending and welding internal reinforcement, a lamp tube frame, a waterproof groove, etc. Second, the door frame is generally galvanized sheet bending or aluminum profile welding, and one is built-in glass; One is external glass. Let's use a picture to understand their differences. The biggest difference is that one is borderless design and the other is borderless design. The effect of the borderless design is better, and the price is more expensive than galvanized sheet bending door frame.

The interior of the light box will be equipped with high-focus LDE light bars, each of which is guaranteed to be 18w. The light bars are designed for energy conservation and environmental protection, and their energy consumption is much lower than that of ordinary light bars. On the opening of the door frame, we set a hydraulic lever opening mode, which is convenient and time-saving to change the picture. Each pavilion is equipped with a set of time leakage protection. Based on safe electricity use, the lighting time of the pavilion can be set. The box is designed with a buckle lock and bulletproof opening, Each time you open it, you need to unlock the bottom first and then hook the bulletproof opening design.

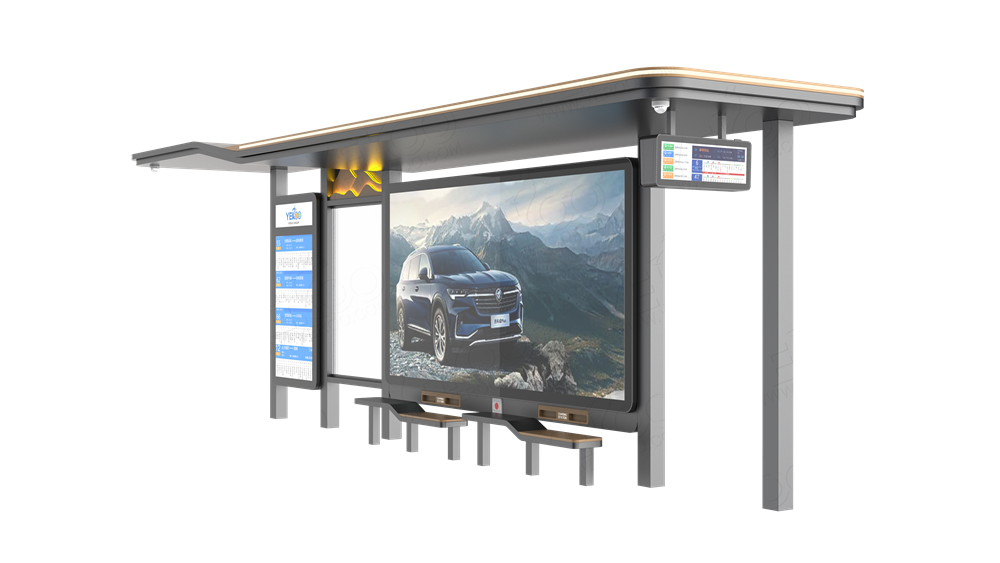

The waiting booth is composed of columns, ceilings, light boxes, and supporting facilities such as seats, and electronic stop boards. The appearance of booth is made of high-temperature electrostatic spraying, and the colors can be selected in a variety of ways. Our industry generally uses K7 color cards to select colors. Generally, the color of the waiting booth we see tends to be darker and darker. This is also a consideration of the overall service life of the waiting booth. For example, some dark colors have a very high overall color retention rate, They can achieve five years of color fastness and is still very new, so we usually see a city's bus shelter with more dark colors.

The internal structure of the waiting booth has the above points. If you have any purchase needs, please consult us.
