A bus shelter arrives on site as a finished product, but it only becomes dependable transit infrastructure once it is fixed to the ground, wired correctly and signed off with a full paper trail. Most early-life failures — rocking frames, pooling water, lighting circuits that trip in the first rain — trace back to installation shortcuts rather than manufacturing defects. This bus shelter installation guide sets out the complete sequence YEROO follows on projects in more than 110 countries: pre-installation survey, foundation selection, lifting and positioning, electrical and solar connection, and final commissioning. It is written for procurement officers, city planners and the contractors who put the steel in the ground.

Pre-Installation Site Survey: Preventing Problems Before They Are Built In

Every successful bus shelter installation starts below the pavement surface, weeks before a truck is scheduled. A structured site survey costs a day; it prevents change orders that can consume weeks of project time later.

Underground utilities. Excavating into an unmarked power cable or telecom duct is the most expensive mistake on any shelter site. Commission a utility scan — GPR survey or cable avoidance tool sweeps, depending on local practice — and mark all services before the excavation plan is finalised. Where a duct crosses the footing zone, the anchor layout may need to shift by a few hundred millimetres, which is a drawing revision in the office rather than a crisis on site.

Pavement structure and levels. Core or trial-pit the existing pavement to confirm slab thickness and base material. Check longitudinal and cross falls: finished paving should drain away from the shelter footprint at roughly 1–2%, because water that ponds against base plates accelerates corrosion and creates ice hazards in winter climates.

Orientation and exposure. The open side of the shelter should face away from prevailing wind-driven rain, and glazing must not reflect glare into approaching traffic. For solar shelters, the roof panel needs an unobstructed path to the sun — a mature street tree 15 metres away can cut energy harvest measurably in low-sun months.

Boarding geometry and access. Allow clear ground space for wheelchair users and prams alongside the shelter doors, aligned with guidance such as the UK Department for Transport's Inclusive Mobility standards or the U.S. Access Board's ADA standards for North American projects.

Permits and lead times. Highway authority permits, heritage consents and electricity distributor applications often take longer than the installation itself. Start them the day the order is placed.

The survey report should feed directly into YEROO's structural drawings, fixing anchor positions, kerb offsets and cable routes before the shelter leaves our 31,000 sqm factory.

Choosing the Right Bus Shelter Foundation Type

The foundation is the component nobody sees and everybody relies on. Foundation choice is driven by three factors: the ground you have, the surface you must preserve and the wind load the shelter must resist. YEROO supplies engineered anchoring details for each project, calculated against the destination country's wind code — the table below summarises the four options used most often in our global project portfolio (see completed installations on the YEROO projects page).

For the standard concrete pad, a few details matter more than the rest. The anchor bolt pattern must be set with a fabricated steel template, not measured by hand — a 5 mm bolt-position error becomes a 30-minute argument with a base plate that will not drop on. Concrete strength develops over time; as The Concrete Centre guidance explains, a typical C25/30 mix reaches its design strength at around 28 days, which is why YEROO's drawings specify either a seven-day minimum before loading or a high-early-strength mix when a tight programme demands it. Bolt torque, washer types and grout specification should all come from the project drawings rather than the contractor's habits.

Delivery, Lifting and Positioning: The Core of Bus Shelter Installation

The day the shelter arrives is the day with the most people, the most plant and the most risk. Good planning keeps it uneventful.

Delivery and unloading. YEROO ships shelters flat-packed in containers or as pre-assembled modules depending on the project. Panels travel in protective frames; roof and posts arrive on skids. Assign a forklift or hiab crane for unloading and inspect for transit damage before signing the delivery note — transit damage claims are only straightforward while the carrier's paperwork is still open.

Lifting. Use only the designated lifting points. Glass panels and roof sections should be lifted with spreader bars and soft slings so that no load path runs through the glazing edges. Most crane operators suspend glass-handling lifts when gusts exceed roughly 10 m/s; check the operator's own limits, which are always the stricter authority. BRT and large modular shelters may need a mobile crane with an exclusion zone and dedicated banksman.

Positioning and alignment. Two checks make a shelter look professionally installed for its whole life. First, parallelism with the kerb — within about 10 mm over the shelter's length, so the doors line up with the boarding area. Second, plumb verticality of posts, adjusted with stainless shims before final tightening. Anchor bolts are then torqued in a star sequence with a calibrated wrench to the values on the project drawings, typically in the range of 160–200 N·m for M16 grade 8.8 bolts, and thread-locker applied where specified.

A two-person crew normally erects a standard shelter in four to six hours once the foundation is ready. The bottleneck in almost every bus shelter installation programme is never the assembly — it is the concrete curing clock and the utility clearance that precedes it.

Electrical, Solar and Smart System Connections

A shelter that is mechanically perfect but electrically wrong will generate complaint calls within a week. Electrical work must be executed by a licensed local electrician in accordance with national wiring rules — BS 7671 in the United Kingdom, AS/NZS 3000 in Australia and New Zealand, IEC 60364 in most other markets.

Mains-powered shelters. YEROO shelters arrive pre-wired with an accessible isolator switch, so the site scope is a cable route under the pavement in ducting, connection to a locally protected circuit (30 mA RCD as standard practice) and termination at the isolator. All junction boxes on YEROO shelters are rated IP65 or better for outdoor exposure. Before energising, the electrician completes insulation resistance and earth continuity tests and records the results in the handover file.

Solar shelters. Roof-mounted photovoltaic panels should be oriented toward true north in the southern hemisphere and true south in the northern hemisphere, at the tilt angle specified for the project latitude. Battery cabinets need ventilation clearance inside the shelter body and should be mounted above splash height. Off-grid solar bus shelters remove the grid-connection approval from the critical path entirely — a significant advantage where the electricity distributor's lead time runs to months rather than weeks.

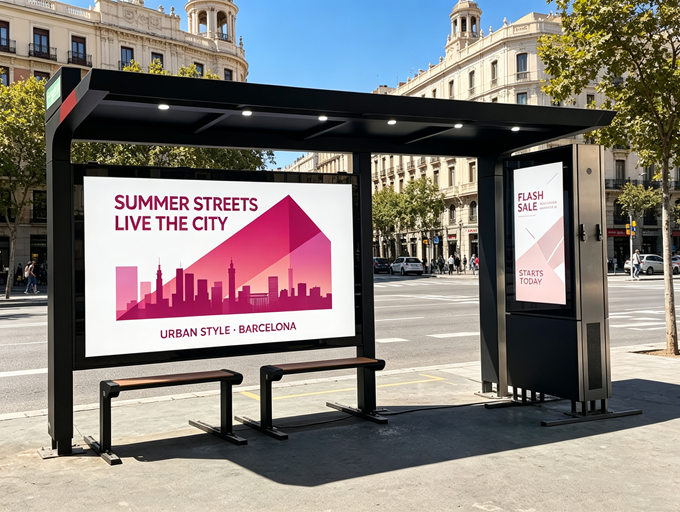

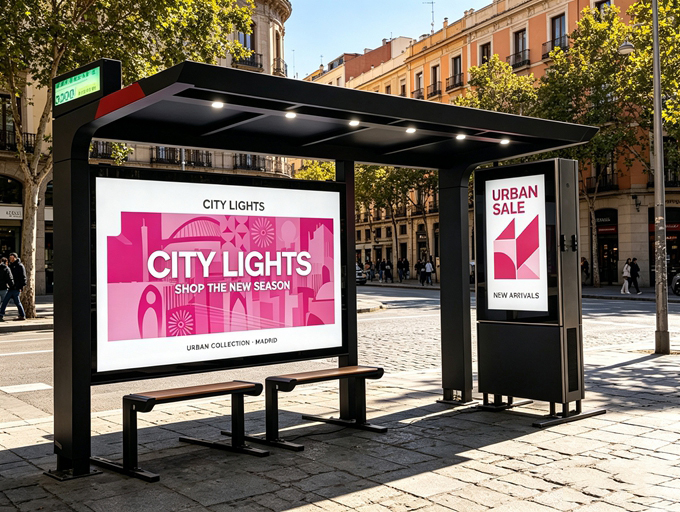

Smart and digital shelters. Real-time arrival displays, digital advertising screens, CCTV and Wi-Fi each add load and network requirements. Plan the data connection early — 4G/5G antennas need placement clear of metal obstructions, while fibre routes need duct capacity agreed with the network operator. Screens on smart bus shelters benefit from dedicated surge protection and remote monitoring, so faults can be diagnosed before a passenger ever notices a dark display.

Commissioning and Handover: Protecting the Warranty

Commissioning is where a bus shelter installation becomes documented, warrantied infrastructure instead of "the thing the contractor left behind". YEROO's standard commissioning checklist covers the following acceptance points:

Two commissioning habits deserve emphasis. The first is the 7-day re-torque: foundations and shims settle slightly as loads transfer, and re-checking anchor torque a week after installation catches any movement while correction is still trivial. The second is the documentation pack. A shelter's warranty begins at commissioning sign-off, and claims are processed quickly only when the torque log, test certificates and as-built drawings exist in one place. YEROO supports handover flexibly: supervised installation by our engineers, remote video guidance for local crews, or full commissioning for DOOH and smart projects where display calibration matters. Crews in 110+ countries have completed this process under all three models.

Frequently Asked Questions

How long does a complete bus shelter installation take?A single kerbside shelter with a concrete foundation typically takes two to three working days plus concrete curing: excavation and pour on day one, assembly in four to six hours once strength is adequate. Ballasted or screw-pile installations can be completed the same day. Allow extra time for permit approval and utility clearance in your programme.

Do bus shelters need planning permission or permits?Requirements vary by country and even by city. Shelters on highway land usually fall under highway authority approval rather than full planning permission, but heritage zones, conservation areas and bus-stop relocations almost always need formal consent. Confirm requirements with the local highway authority before ordering, and factor their lead time into the programme.

Can a bus shelter be installed without concrete foundations?Yes. Precast ballast bases, ground screws and resin anchors into an existing slab all avoid traditional excavation. The governing constraint is wind load: the foundation must resist the uplift and overturning moments calculated for the site's design wind speed, and the local authority must accept the engineering justification.

Who is responsible for connecting a shelter to the electricity grid?The site's local licensed electrician connects the pre-wired shelter to a suitably protected circuit, while the electricity distributor approves and executes the new supply point where required. YEROO supplies wiring diagrams and test documentation; solar-powered shelters avoid the grid connection process entirely, removing that approval from the critical path.

When can passengers start using a newly installed shelter?Passenger use can begin once commissioning checks are complete. Standard concrete foundations reach usable strength in about seven days, or 48–72 hours with a high-early-strength mix; because a shelter imposes only light loads, early use after sign-off is normal. Ballasted and screw-pile shelters can be opened to passengers the same day they are installed.

Does YEROO send engineers to the installation site?Three support models are available: dispatch of a YEROO installation supervisor for the full erection and commissioning, remote video guidance for trained local contractors, and supervised commissioning for smart and digital screen projects. The choice depends on project complexity and budget, and is agreed during the order stage so the crew arrives prepared.

Build the Groundwork Into the Order

A smooth bus shelter installation is designed, not improvised. The survey data, foundation engineering and electrical details that determine installation day are all fixed when the order is placed — which is why YEROO's 26 years of OEM/ODM shelter manufacturing experience includes supplying complete installation documentation with every project, from anchor templates to commissioning checklists. Browse the YEROO bus shelter range to compare models and specifications, or review completed installations across 111+ countries on our projects page. Contact our team to request project-specific foundation drawings and an installation programme for your next tender.
